ULC Lead Carbon Battery
ULC Lead Carbon Battery

• Fast Charge • Lead Carbon

ULC series lead-carbon batteries use functional activated carbon and graphene as carbon materials, which are added to the negative plate of the battery to make lead carbon batteries have the advantages of both lead-acid batteries and super capacitors. It not only improves the ability of rapid charge and discharge, but also greatly prolongs the battery life, more than 2000 cycles at 80%DOD. And even If the batteries are not charged fully during daily use, the battery life span won’t be affected.

  • • Brand: UPBattery / OEM Brand for customers Freely
  • • ISO9001/14001/18001;
  • • CE/UL/MSDS;
  • • IEC 61427/ IEC 60896-21/22;

UPBattery is one of the TO10 manufacturers in China’s lead-acid battery industry integrating design and export. We have more than 19 years of experience in design, manufacturing and export. We have a good brand, large production scale, advanced technology, perfect Sales network and professional service team, and can provide you with OEM&ODM services

Inquire Now
Categories

Need Battery Urgent?

You can contact us in any way that is convenient for you. We are available 24/7 via: sales@cssun.net or WhatsApp/WeChat: (+86)-13613021776
CONTACT US
New Products

> Characteristics

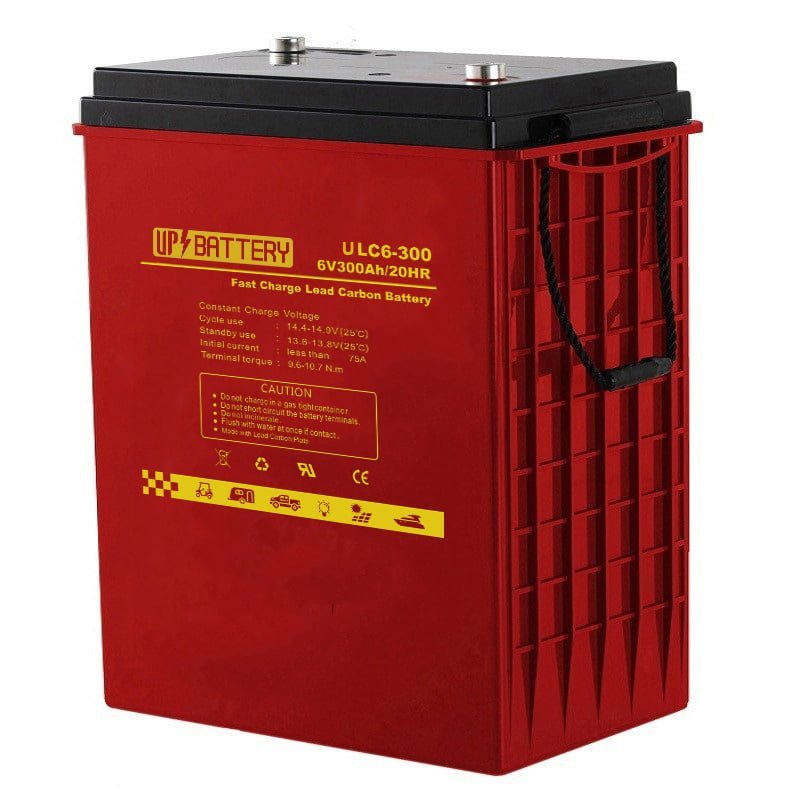

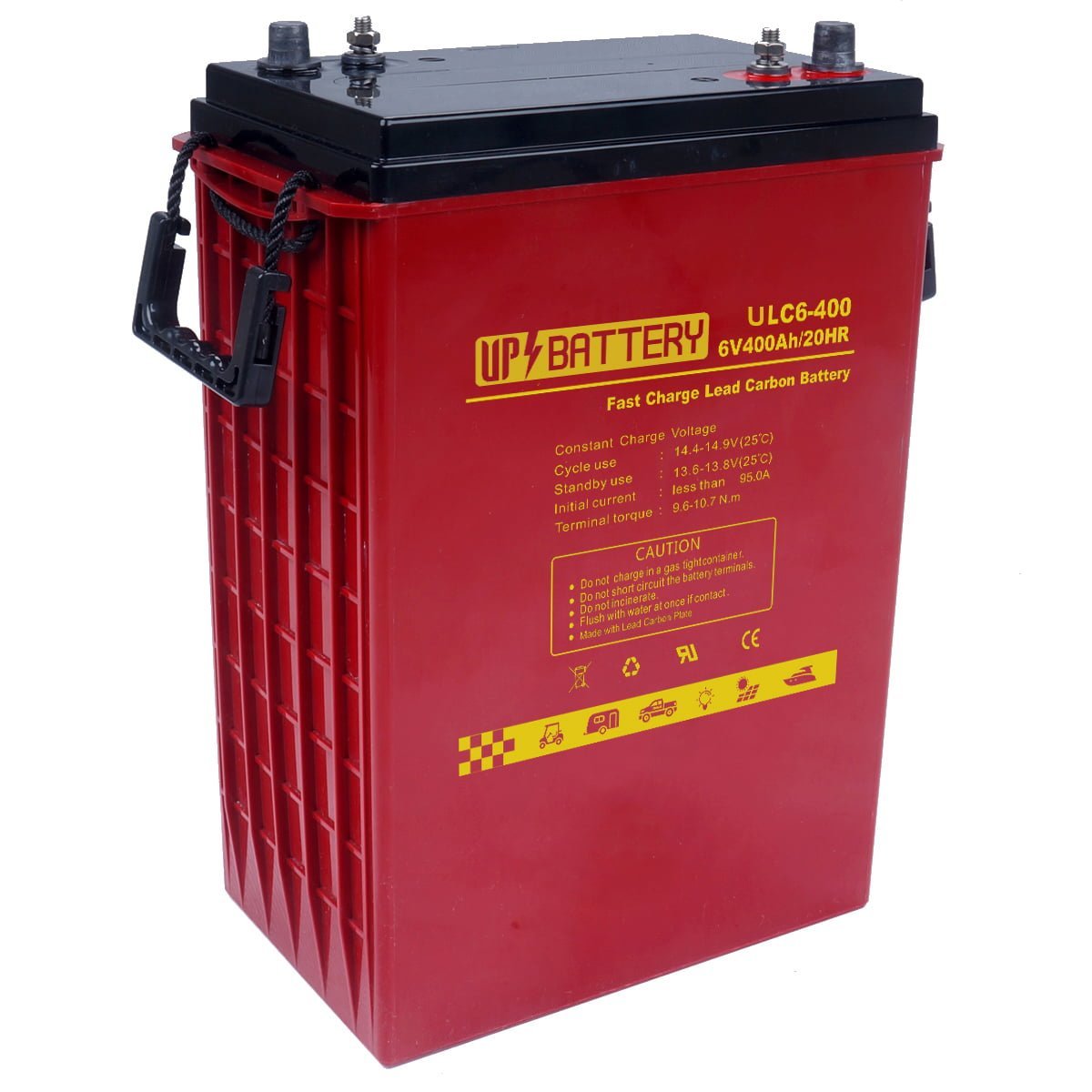

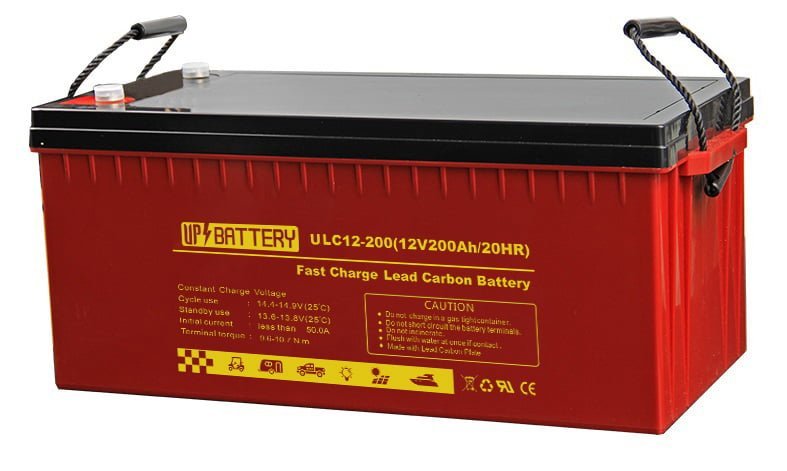

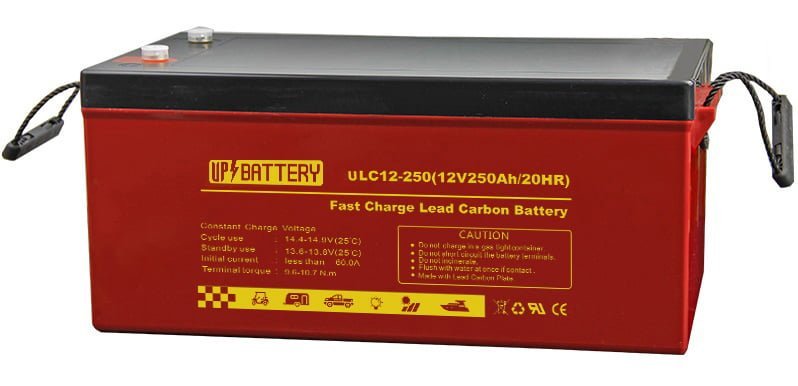

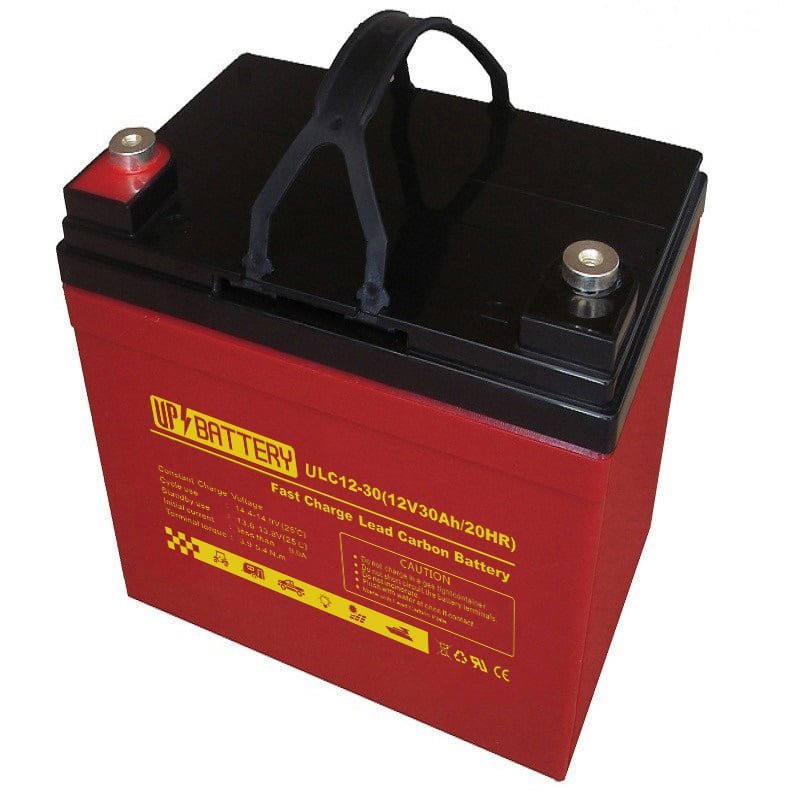

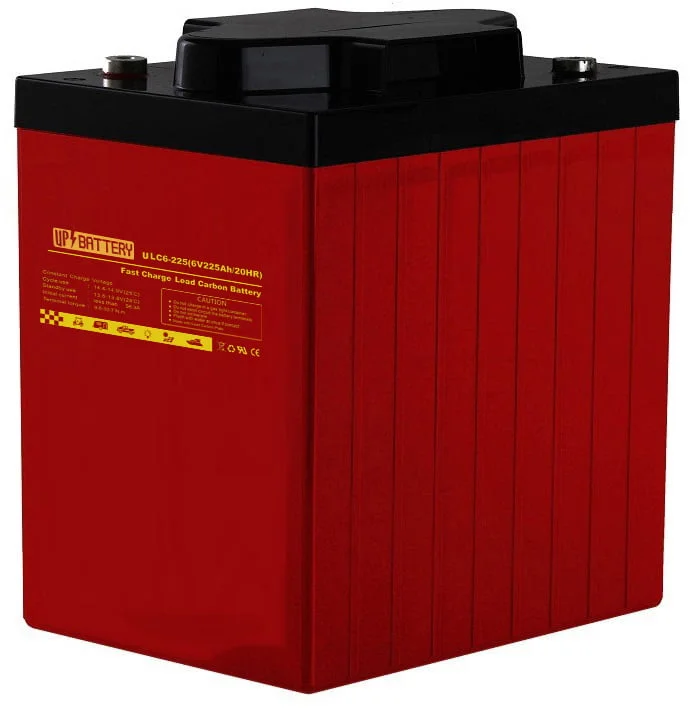

ULC SERIES FAST CHARGE LONG LIFE LEAD CARBON BATTERIES

  • Voltage: 6V, 12V
  • Capacity: upto 6V400Ah, 12V250Ah.
  • Cyclic usage: 80% DOD, >2000 cycles.
  • Brand: UPBattery / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved



> Features For Long Life Fast Charge Lead Carbon Battery

ULC series lead-carbon batteries use functional activated carbon and graphene as carbon materials, which are added to the negative plate of the battery to make lead carbon batteries have the advantages of both lead-acid batteries and super capacitors.It not only improves the ability of rapid charge and discharge, but also greatly prolongs the battery life, more than 2000 cycles at 80%DOD. It is specially designed for daily heavy cyclic discharge use with feature low boost charge voltage, so is more suitable for the application of PSOC.

> Advantages For Long Life Fast Charge Battery

  1. Less sulfation in case of partial state-of-charge operation.
  2. Lower charge voltage and therefore higher efficiency and less corrosion of the positive plate.
  3. And the overall result is improved cycle life.
  4. Tests have shown that our lead carbon batteries do withstand at least five hundred 100% DoD cycles.
  5. The tests consist of a daily discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C₂₀.
  6. ≥ 1800 cycles @ 90% DoD (discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C₂₀)
  7. ≥ 2500 cycles @ 60% DoD (discharge during three hours with I = 0,2C₂₀, immediately followed by recharge at I = 0,2C₂₀)
  8. ≥ 3800 cycles @ 40% DoD (discharge during two hours with I = 0,2C₂₀, immediately followed by recharge at I = 0,2C₂₀)

> Construction For Deep Cycle Lead Carbon Battery

> Applications For Lead Carbon Battery

  • The home energy storage system
  • Smart power grid and micro-grid system
  • Distributed energy storage system
  • Solar and wind energy storage system
  • Electric power vehicles
  • Solar power generation grid or off-grid energy storage system
  • Generation and battery hybrid energy storage system
