OPzV Tubular Gel Battery
OPzV Tubular Gel Battery

 Tubular OPzV • Deep Cycle

UPBattery created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities.

This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

  • • Capacity: 2V200Ah~2V3000Ah;12V 100AH-200AH
  • • Designed floating service life: >20 years @ 25 °C/77 °F.
  • • Cyclic usage: 80% DOD, >2000cycles
  • • Brand: UPBattery / OEM Brand for customers Freely
  • • Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427

Inquire Now
Categories

Need Battery Urgent?

You can contact us in any way that is convenient for you. We are available 24/7 via: sales@cssun.net or WhatsApp/WeChat: (+86)-13613021776
CONTACT US
New Products

> Characteristics

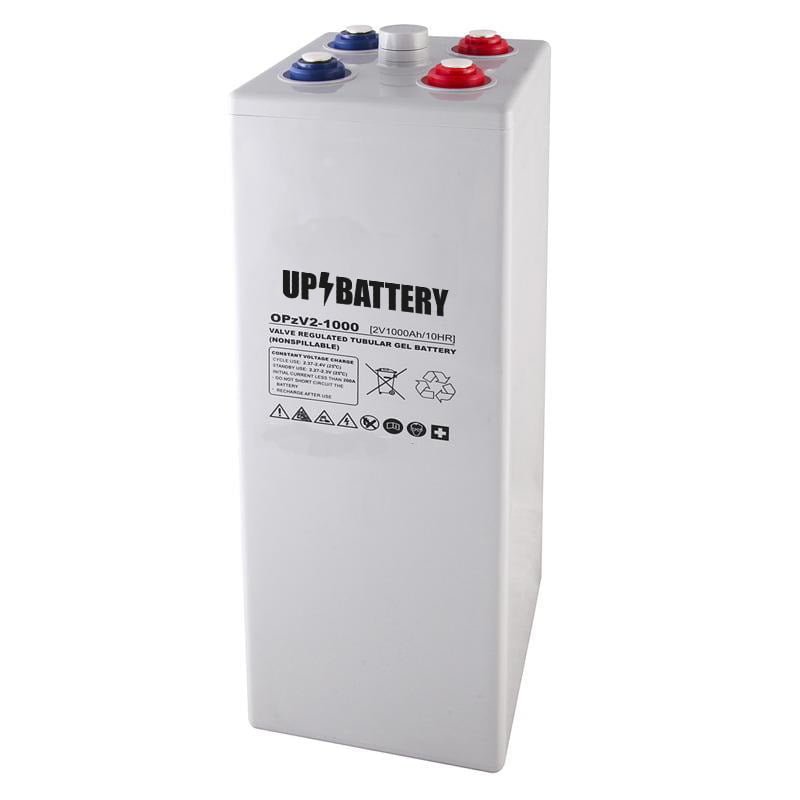

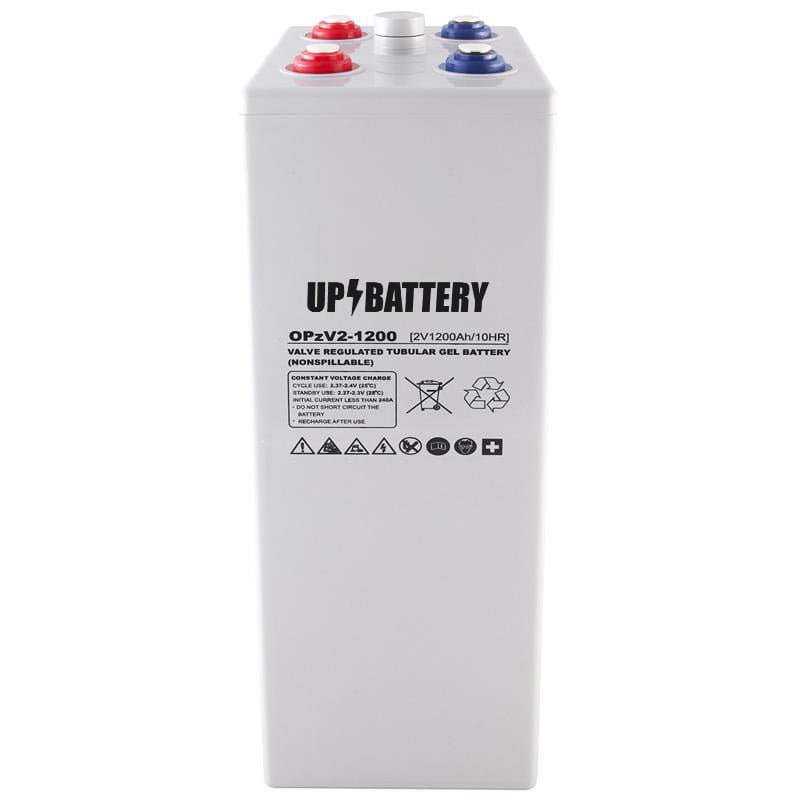

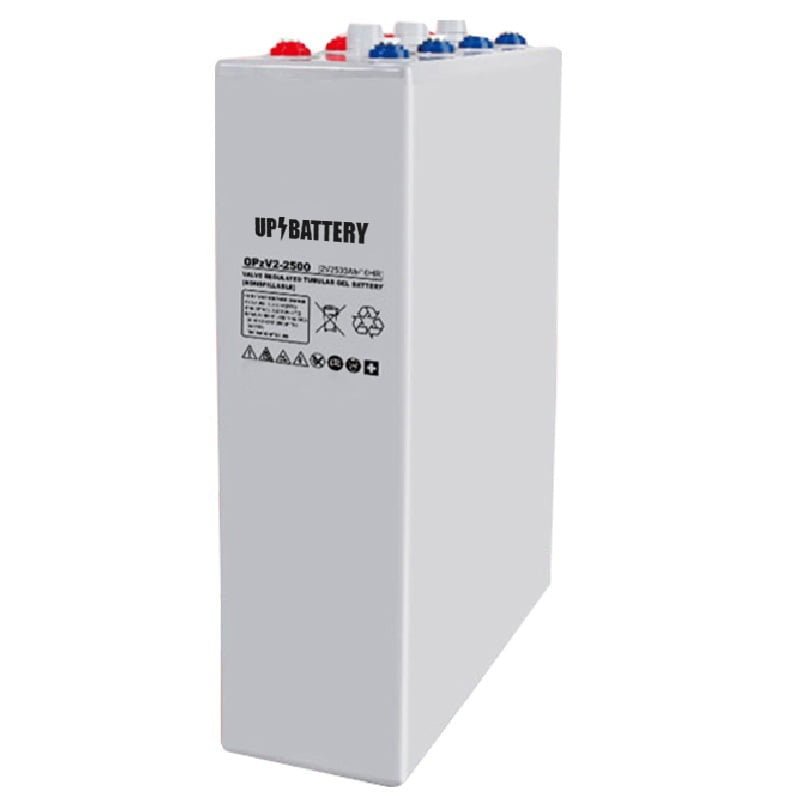

OPzV Series TUBULAR GEL BATTERY LONGEST LIFE GEL BATTERY(solid-state)

  • Voltage: 2V
  • Capacity: 2V200Ah~2V3000Ah
  • Designed floating service life: >20 years @ 25 °C/77 °F.
  • Cyclic usage: 80% DOD, >2000cycles
  • Brand: UPBATTERY / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

> Summary For OPzV Gel Solid-State Battery



By combining the newly developed tubular positive plates with fumed gelled electrolyte, UPBATTERY created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

> Features And Advantages For OPzV Solid-State Battery


  1. Over 20 years design life at floating condition @ 25°C
  2. Wide operating temperature range from -40°C to 60°C
  3. Tubular positive plate with prolonged cycle life
  4. Fumed Silica gel electrolyte
  5. Lead Calcium die cast grid with improved corrosion resistance capability
  6. Low self-discharge rate and long shelf life
  7.  Excellent deep discharge recovery capability

> Construction For OPzV Tubular Gel Battery (Solid-State)


  • Positive Plates: Robust tubular plates consisting of Pb-Ca-Sn alloy, optimized for high corrosion resistance, offer an extreme high cycling expectancy;
  • Negative Plates: Grid plate construction consisting of lead calcium alloy;
  • Separator: Microporous and robust PVC-SiO2 separator, for positive and negative plates and optmized for low internal resistance;
  • Container: ABS (UL94-HB), Flammability resistance of UL94-V1 can be available upon request;
  •  Terminal Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity;
  • Valves: Release gas in case of excess pressure and protects the cell against atmosphere, reasonable open and close valve pressure, high reliable on performance.

> Application



Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.
